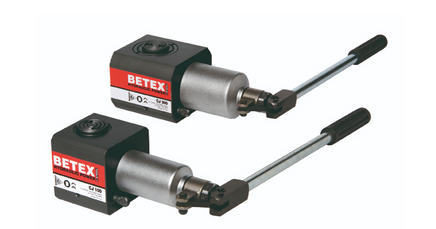

The BETEX CJ line of flat manually operated hydraulic jacks are used when limited space is available on lifting jobs.
Features:
- Spring Loaded
- Hardened chrome piston
- Ram inside roll-polished
- Perfect for job with limited space, like positioning machines or mounting tools
| Capacity |
20 tons |
| Stroke |
41mm (1.61") |
| Minimum Height |
95mm (3.74") |
| Fully Extended Height |
136mm (5.35") |
| Piston Rod Diameter |
37.95mm (1.5") |
| Base Plate Dimension |
90mm (3.54") x 70mm (2.75") |
| Lifting Plate Dimension |
Diameter 40mm (1.6") |
| Oil Capacity |
250 cubic cm (15.25 cubic inches) |
