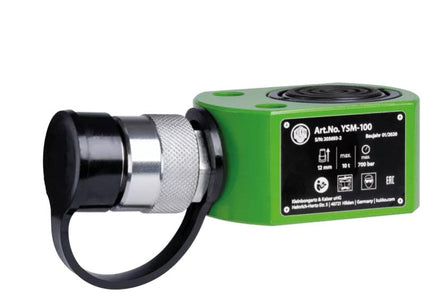

The Kukko YSM series of flat lift cylinders are used when there is limited clearance for standard cylinders when moving equipment or other heavy objects
Features:
- Pistons made of hard chrome high quality steel
- CR-4000 standard 3/8" coupler and dust cap
- Mounting holes for easy assembly
- Grooved piston ends mean pressure pads are not needed
- Preloaded return spring reduces the entry speed and improves performance
- Radial shaft seal removes impurities on the piston and extends service life
| Capacity |
22 tons |
| Stroke |
3/8" |
| Minimum Height |
2" |
| Fully Extended Height |
4" |
| Base Plate Dimension |
4" x 3" |
