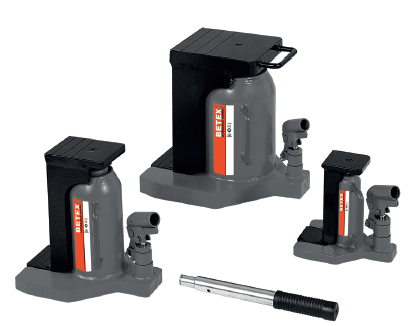

The BETEX TOE line of hydraulic toe jacks is is high-quality group of hydraulic jacks that can be used to lift low clearance heavy equipment with ease.
Features:
- Heat treated and chrome-plated hydraulic rod provides longer seal life and optimum performance
- Internal safety valve prevents toe jack from being used beyond its rated capacity
- Welded housing and base eliminates typical locations for leaks
- Low toe heights for tight spaces
- Swivel sockets for easy hand operation
- Removable jack handle
- No external springs
- External lifting handle on jack body
| Top Capacity |
16 tons |
| Toe Capacity |
8 tons |
| Stroke |
131mm (5.11") |
| Toe Height |
25mm (.98") |
| Top Lifting Point Height |
275mm (10.83") |
| Piston Rod Diameter |
52mm (2.05") |
| Base Plate Dimension |
211mm (8.3") x 256mm (10.08") |
| Toe Lifting Plate Dimension |
90mm (3.54") x 55mm (2.16") |
| Weight |
23.2kg (51.1 lbs.) |
