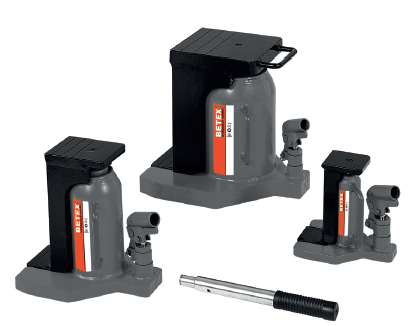

The BETEX TOE line of hydraulic toe jacks is is high-quality group of hydraulic jacks that can be used to lift low clearance heavy equipment with ease.
Features:
- Heat treated and chrome-plated hydraulic rod provides longer seal life and optimum performance
- Internal safety valve prevents toe jack from being used beyond its rated capacity
- Welded housing and base eliminates typical locations for leaks
- Low toe heights for tight spaces
- Swivel sockets for easy hand operation
- Removable jack handle
- No external springs
- External lifting handle on jack body
| Top Capacity |
6 tons |
| Toe Capacity |
3 tons |
| Stroke |
110mm (4.33") |
| Toe Height |
19mm (.75") |
| Top Lifting Point Height |
212mm (8.35") |
| Piston Rod Diameter |
36mm (1.42") |
| Base Plate Dimension |
160mm (6.3") x 217mm (8.54") |
| Toe Lifting Plate Dimension |
65mm (2.56") x 50mm (1.97") |
| Weight |
11.3kg (25 lbs.) |
