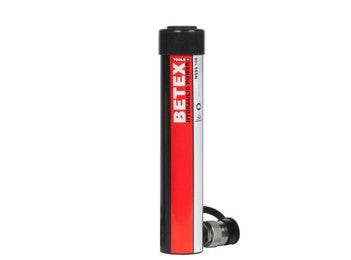

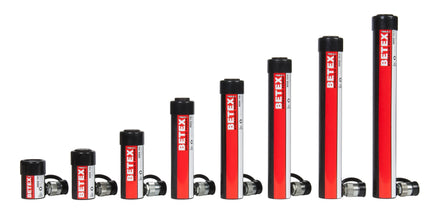

BETEX NSSS cylinders are standard industrial spring return single action hydraulic cylinders.
- All cylinders are single-acting with spring return
- Pistons are hard chromed
- Rams inside roll polished
- Exterior blasted with black nitride coating
- Female coupler and dust cap included
- 3/8" NPT coupler threads
- Stop rings, plated pistons and heavy duty construction
- Positive piston stop to prevent over extension
- Mounting holes on cylinder bottom
| Capacity | 10 tons |
| Stroke | 203.5mm (8") |
| Minimum Height |
298mm (11.75") |
| Diameter | 57mm (2.25") |
| Cylinder Diameter | 40mm (1.57") |
| Weight | 5.4kg (11.9 lbs.) |
