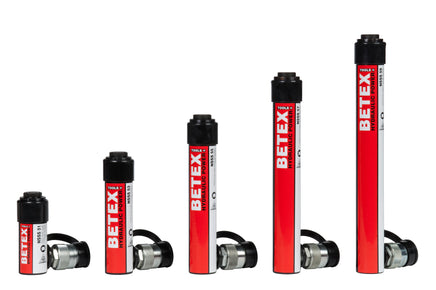

BETEX NSSS cylinders are standard industrial spring return single action hydraulic cylinders.
- All cylinders are single-acting with spring return
- Pistons are hard chromed
- Rams inside roll polished
- Exterior blasted with black nitride coating
- Female coupler and dust cap included
- 3/8" NPT coupler threads
- Stop rings, plated pistons and heavy duty construction
- Positive piston stop to prevent over extension
- Mounting holes on cylinder bottom
| Capacity | 5 tons |
| Stroke | 183mm (7.2") |
| Minimum Height |
216mm (10.75") |
| Diameter | 38mm (1.5") |
| Cylinder Diameter | 1" |
| Weight | 2.4kg (5.3 lbs.) |
