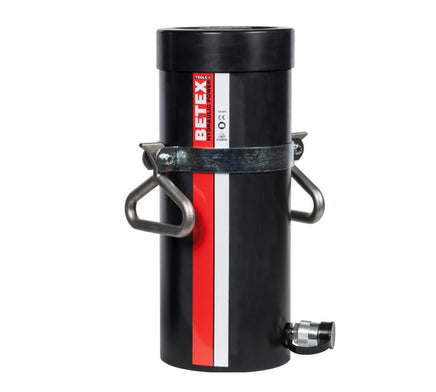

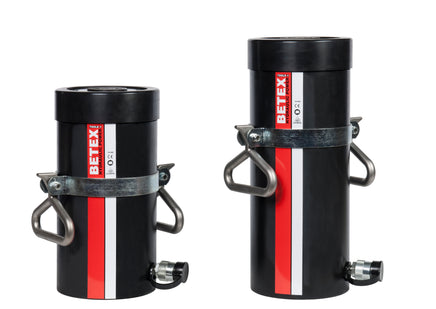

BETEX NSSS cylinders are standard industrial spring return single action hydraulic cylinders.
- All cylinders are single-acting with spring return
- Pistons are hard chromed
- Rams inside roll polished
- Exterior blasted with black nitride coating
- Female coupler and dust cap included
- 3/8" NPT coupler threads
- Stop rings, plated pistons and heavy duty construction
- Positive piston stop to prevent over extension
- Mounting holes on cylinder bottom
| Capacity | 100 tons |
| Stroke | 260mm (10.25") |
| Minimum Height |
448mm (17.63") |
| Diameter | 152mm (6") |
| Cylinder Diameter | 70mm (2.75") |
| Weight | 72.6kg (160 lbs.) |
