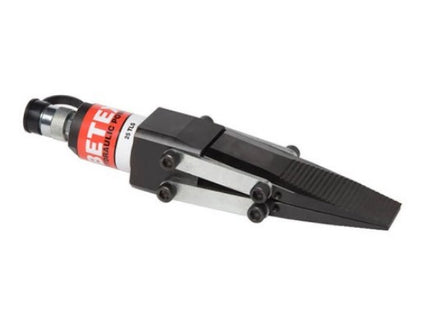

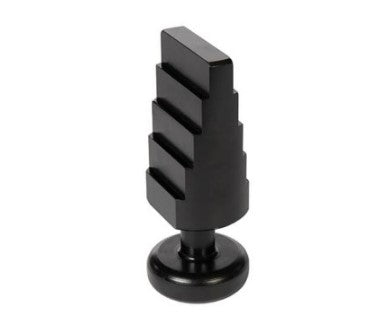

Hydraulic spreader used for lifting equipment or spreading flanges. Includes 2 25 ton spreaders, BETEX AHP 701 hydraulic 2-stage pump, (2) 1.5 meter hoses, manifold system, (2) pressure gauges, quick couplers, 2 safety wedges and steel storage case. All the components you will need to operate the wedges.
Two 25 ton spreaders and manifold pump system to operate both spreaders simultaneously. The manifold hydraulic system spreads the lifting force across both spreaders, giving simultaneous lifting or spreading while preventing tilting of load.
25 ton capacity x 2 wedges for total capacity of 50 ton

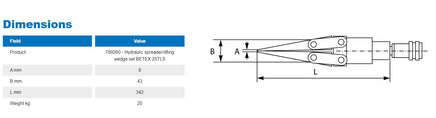

Minimum wedge spread - 8mm (.31")
Maximum wedge spread - 40mm (1.7")
Weight - 36Kg (80 lbs.)
- High quality hardened steel wedges
- Loads are lifted perpendicularly
- Accurate height adjustment
- Perfect for applications like spreading flanges, lifting equipment or alignment jobs
Download the manual
